From £134.40
Made to Order|Dispatched within 3 weeks for Primer, RAL and Colour. 6 weeks for Industrial and Burnished Finish
Over 200 colours available

188 RAL colours, 10 Classic Cast Iron Colours & 2 Finishes


Download the latest brochure page or the fitting instructions

Spread the Cost

A convenient and cost-effective way to manage your budget.

Weight Caution

Cast Iron is extremely heavy, please read our handling information below

Make it your Own

We are able to offer our Henley in any one of Farrow & Ball's® or Little Greene's® stunning range of quality paints, a perfect match for any heritage property.

They add a classic, high-quality finish to your radiator that perfectly matches your chosen colour.

We only use genuine Farrow & Ball® or Little Greene® paints, for Farrow & Ball® we use their Estate Eggshell (20% sheen), and for Little Greene®, we use their Tom's Oil Eggshell (15% gloss).

The process is very straightforward, simply specify the colour name and reference number along with the radiator range and size and we will provide you with a quotation. Once approved we will order the paint and produce your radiators.

Please do note that (especially with Little Greene®) the reference number is extremely important. Little Greene’s palette of 196 colours includes the ‘Colour Scales’ which offer graduated shades from the same family of pigments. Therefore, similar names have been given, with a colour number for each. Prices and lead times are available on application (please call 01342 302250 for more details).

Cast Iron handling and joining

Due to their weight, Cast Iron Radiators will be delivered on pallets to the nearest hard standing (driveway or yard) and appropriate assistance should be on hand to help move them into a safe dry storage area. They can be very heavy so careful handling is needed to avoid injury. Sectional radiators should always be carried vertically, not stretcher style, this avoids putting stress on the section joins.

These traditional radiators will often be supplied in smaller numbers of joined sections (referred to as batteries) requiring joining on-site to make the complete radiator. We will supply an appropriate joining tool (known as a key) on a sale or return basis, once your radiators are fitted you can return the key in the postage-paid box, if you wish to retain the key, we can then invoice you for the cost

The joining process is not complicated but it does need to be carried out correctly. Ask your installer to check that they have experience in installing and joining cast iron radiators and if they have the appropriate joining tools let us know and we will not send the loan key. This video shows you the way we recommend our radiators should be joined.

Please note, that after the manufacturing process, these radiators are pressure tested and cleaned inside with water, they may, therefore, contain a small amount of dirty water and swarf. If handling on a finished floor, ensure that adequate protective material is in place before working on the radiators.

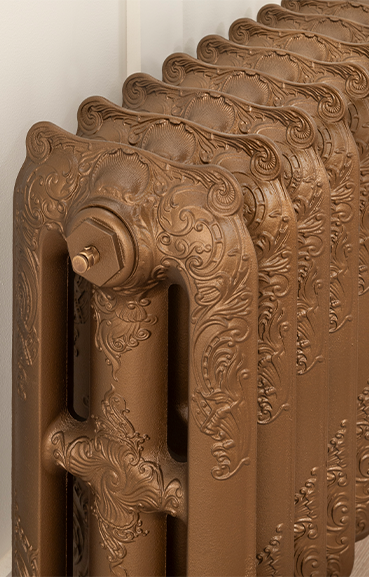

470mm x 844mm in Old Gold

765mm x 844mm in Burnished

Product Specification:

  • Cast Iron 81mm sections
  • CE/UKCA approved & certified to BS EN442
  • 3 heights; 470mm, 570mm & 765mm
  • Up to 40 sections
  • Section output ranging from 324 to 532 (BTU's at Δt 50ºc)
  • Maximum working pressure 2.5 bar
  • Maximum working temperature 100°C

Product Information:


  Hydronic Radiator
Black Primer as standard
188 RAL colours, 10 Classic Cast Iron colours & 2 Finsihes
Little Greene colours available
Farrow & Ball colours available
Delivered in up to 3 weeks for RAL 7 Colours, 6 weeks for Industrial & burnished
10 year guarantee

Pricing Tables

All prices and outputs are given per section in the tables below. Price per section includes plugs, bushes, diverter, wall brackets and wall ties.
Alternative mounting options must be selected, these will include the air vent and appropriate number of wall ties.
Made To Order Anconas® are supplied factory assembled up to a maximum of 40 sections. For radiators outside these parameters,  Please contact our Customer Services to discuss.

Description Image

Traditional cast iron radiators have been the staple material in period homes and schools since the Victorian age. Their dense heavy structure takes time to reach optimal temperature but remains hot long after the central heating is turned off - perfect for cold, drafty period homes. If you are looking to achieve a more traditional aesthetic, or statement piece, cast iron radiators are ideal – as many ranges are available in a selection of RAL colours and special finishes and offer colour palettes typical of Georgian or Edwardian properties. There are few cast iron foundries producing radiators in Europe, and as such they are more expensive than most radiator types - it is always important to check that they are going to be easy to fit and that the whole system is designed to get the best performance out of them.

This material is heavy, so installation needs to be considered, especially as there may be the need to join radiators onsite, working with an installer with a good level of experience in cast iron will make the process and final installation a lot easier.




More Information
CertificationUKCA, CE & EN442
Dual FuelNo
Fuel TypeHydronic
Guarantee10 Years
MaterialCast Iron
Pipe Centres Left To RightNo. of sections x 81mm + 34mm + valves
Delivery3 weeks for Primer, RAL and Colour. 6 weeks for Industrial and Burnished Finish


Product Dimensions
Height(s) (mm) 470mm - 765mm
Width(s) (mm) 81mm - 81mm
Technical Data

What is BTU?

The BTU rate of a radiator is how much heat the radiator will emit, and it is there to help you decide if a radiator is the correct size for your room or not. It’s important to know how much heat your room needs in order for your system to work efficiently.

BTU Calculator
